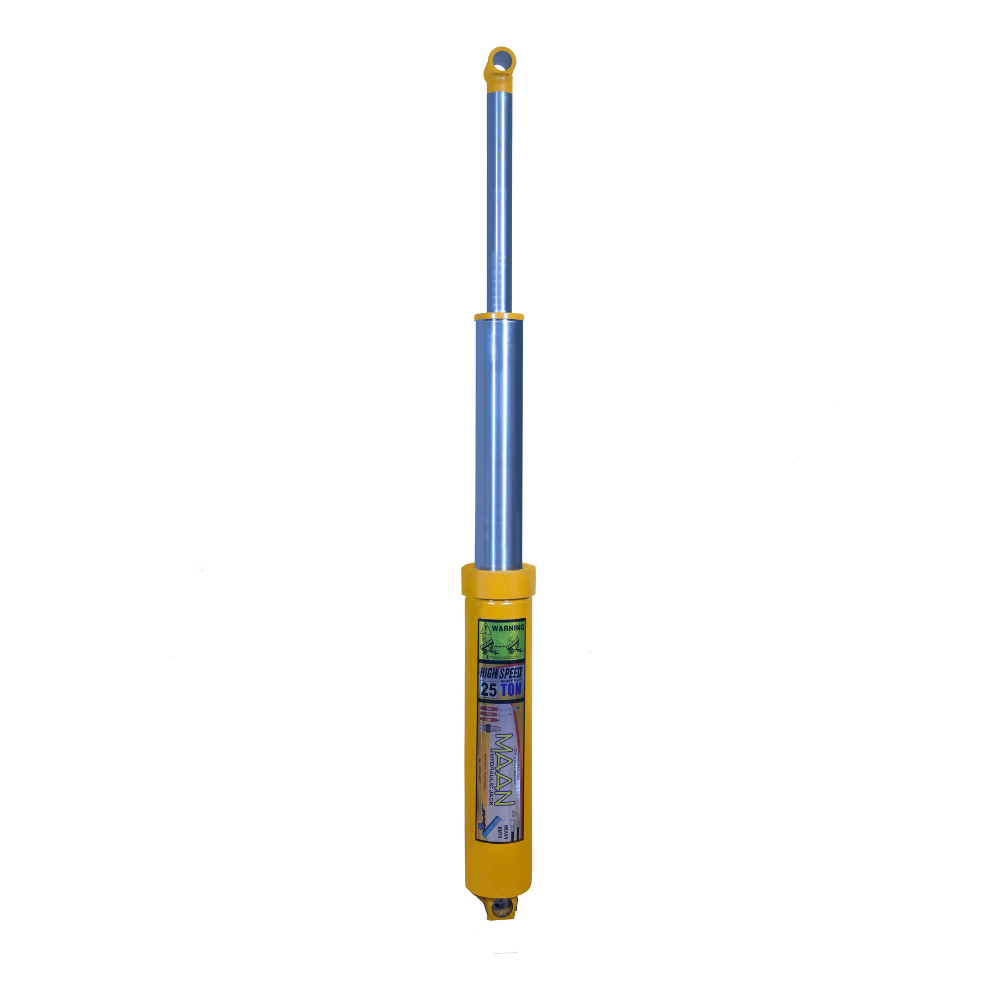

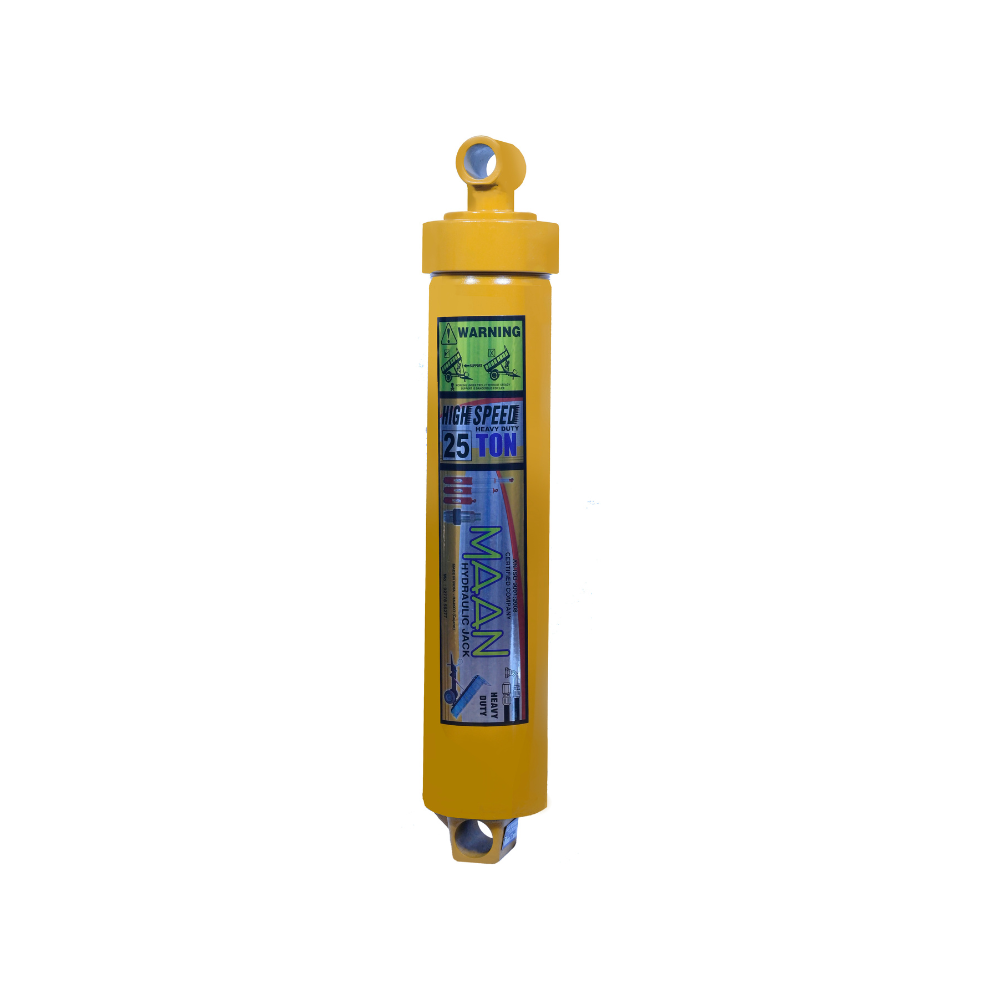

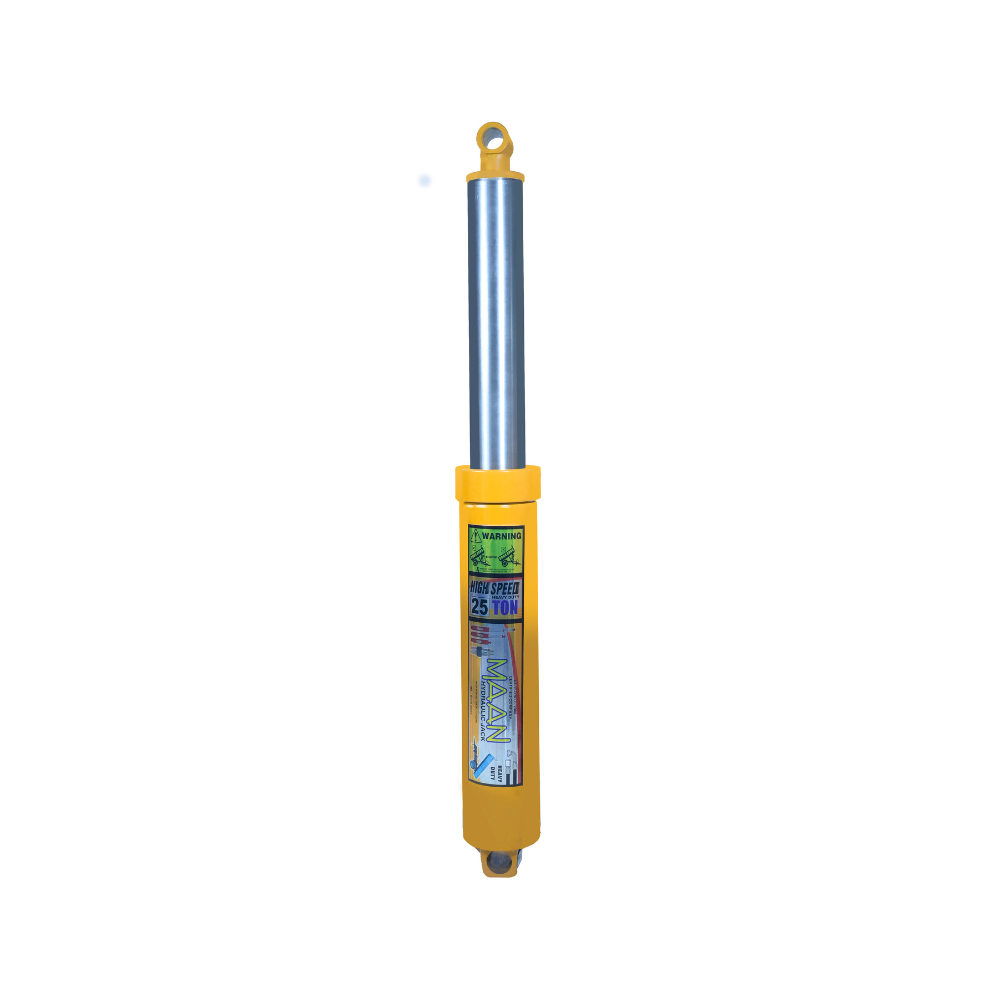

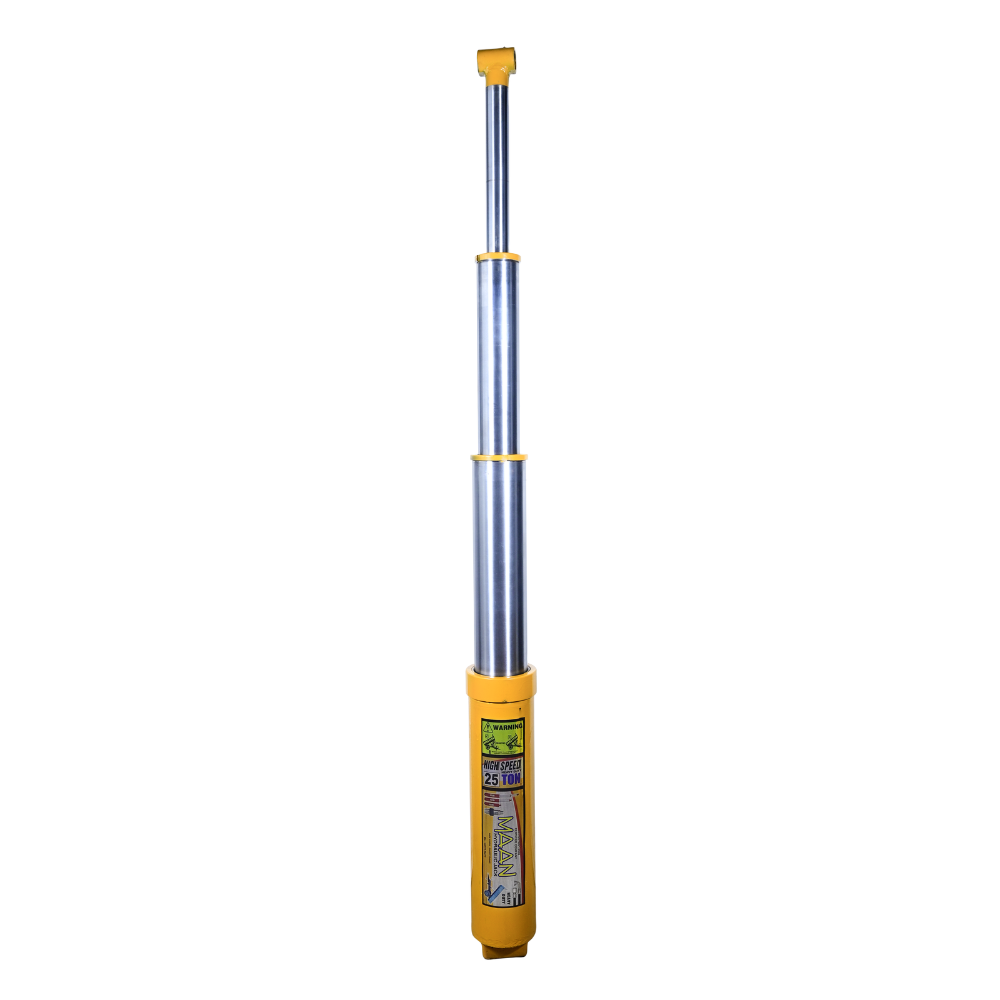

| 25 TON THREE STEP HYDRULIC JACK (26"-30"-33") | |||
| BRAND | MAAN | ||
| CAPACITY | 25 TON THREE STEP | ||
| CLOSE LENGTH | 26" (667 mm) | 30" (737 mm) | 33" (813 mm) |
| OPEN LENGTH | 70" (1766 mm) | 87" (2210 mm) | 97" / 2439 mm |
| CYLINDER SIZE | OD 139 mm X ID 126 mm | OD 139 mm X ID 126 mm | OD 139 mm X ID 126 mm |
| 1ST PISTION SIZE | OD 112 mm x ID 102 mm | OD 112 mm x ID 102 mm | OD 112 mm x ID 102 mm |
| 2ND PISTION SIZE | OD 87mm X ID 76 mm | OD 87mm X ID 76 mm | OD 87mm X ID 76 mm |
| RAM | 48 mm | 48 mm | 48 mm |
| THRED NUT SET MATIREAL | MS Stainless Steel | MS Stainless Steel | MS Stainless Steel |
| PIN SIZE TOP | 32 mm | 32 mm | 32 mm |
| PIN SIZE BOTTAM | 38 mm | 38 mm | 38 mm |
| OIL SEAL | PU
SEAL SET (WIPER, PATTA, O RING, SET) |
PU
SEAL SET (WIPER, PATTA, O RING, SET) |
PU
SEAL SET (WIPER, PATTA, O RING, SET) |
